Project
240 m³ capacity 1 pc. Chiller Room (+2°C)
120 m³ capacity 1 pc. Freezer Room (-18°C)
240 m³ capacity 1 pc. Chiller Room (+2°C)
120 m³ capacity 1 pc. Freezer Room (-18°C)
240 m³ capacity 1 pc. Chiller Room (+2°C)
120 m³ capacity 1 pc. Freezer Room (-18°C)
Installation
240 m³ capacity 1 pc. Chiller Room (+2°C)
120 m³ capacity 1 pc. Freezer Room (-18°C)
240 m³ capacity 1 pc. Chiller Room (+2°C)
120 m³ capacity 1 pc. Freezer Room (-18°C)
240 m³ capacity 1 pc. Chiller Room (+2°C)
120 m³ capacity 1 pc. Freezer Room (-18°C)
ROOM TYPES
1 x Chiller Room, 1 x Freezer Room
PROJECT PURPOSE
General Cold Storage
PROJECT AREA
150 m²

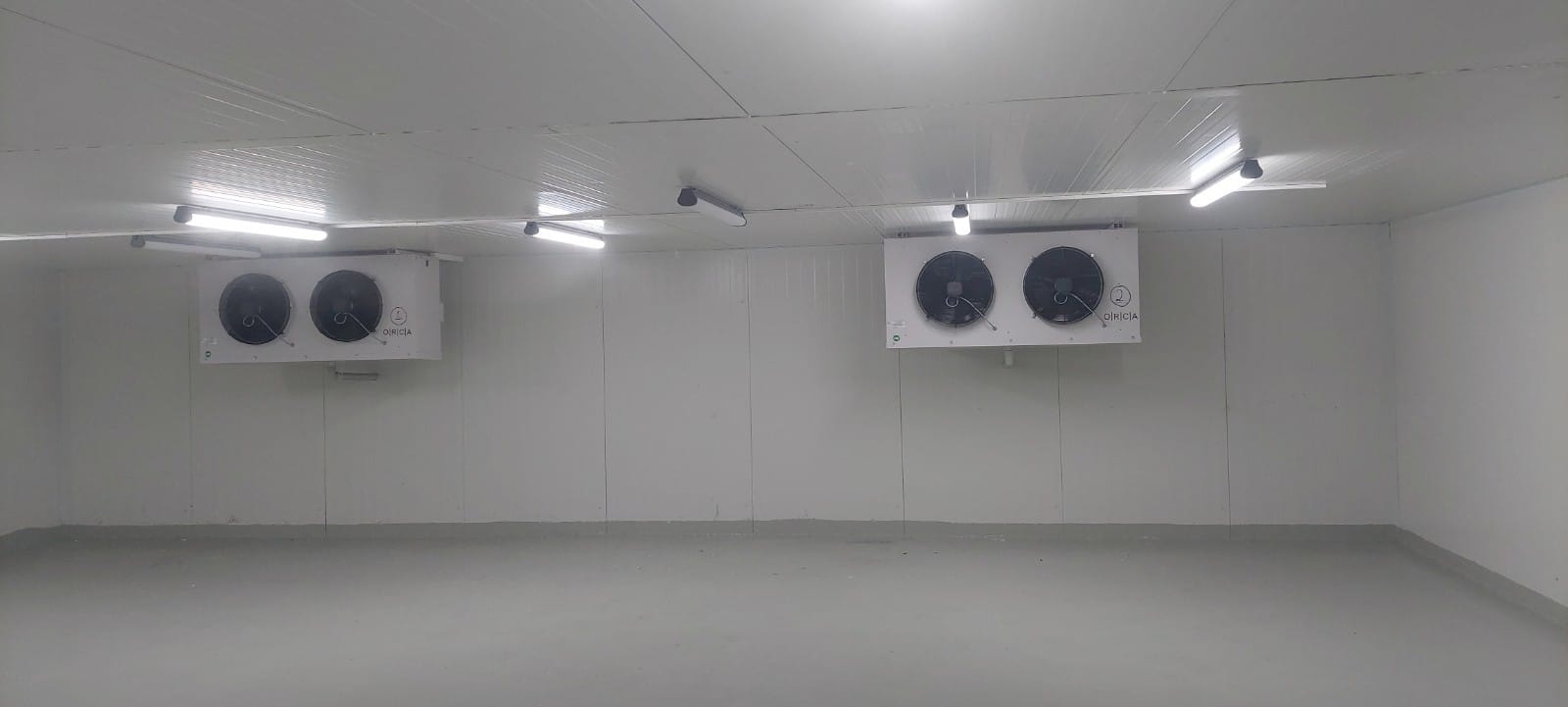

REFRIGERATION SYSTEMS
Split Refrigeration System

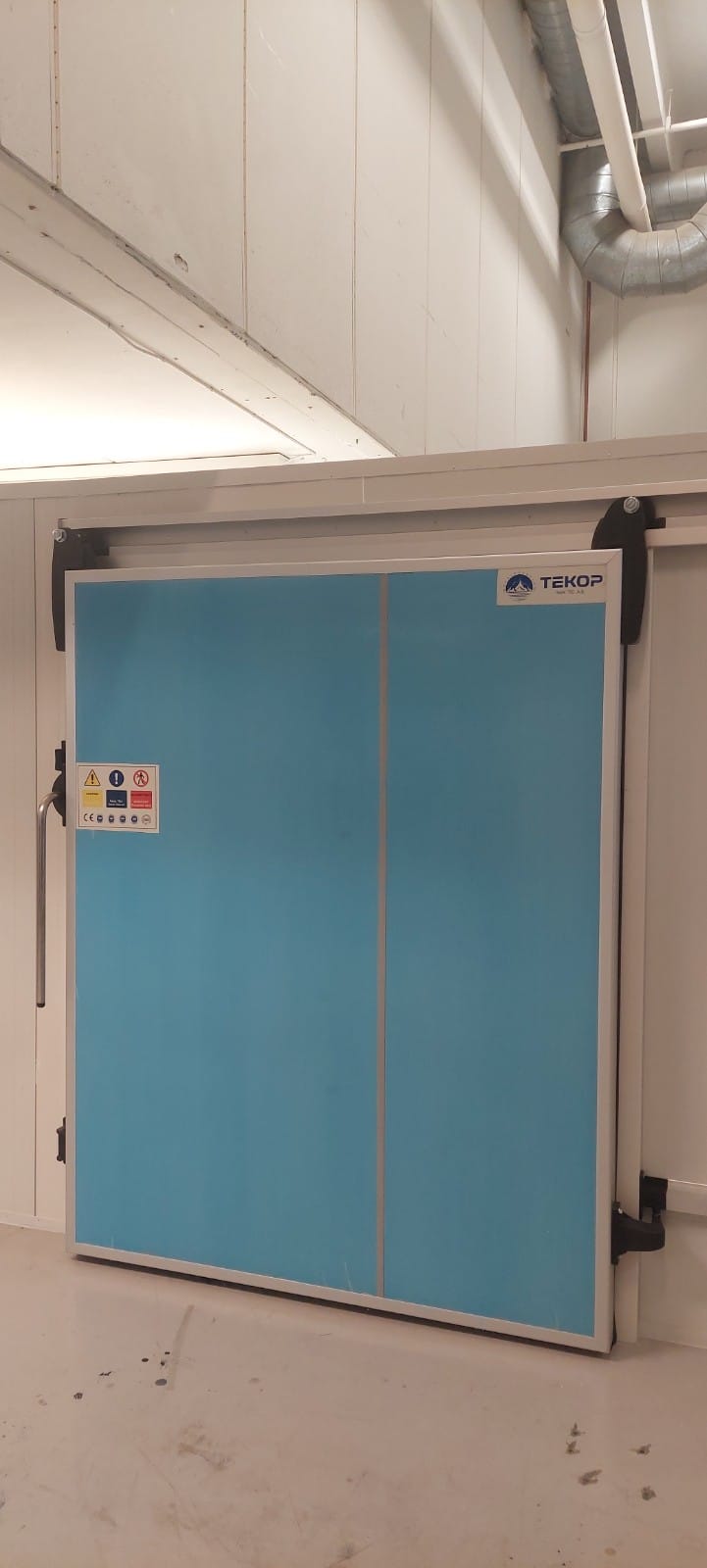

COLD ROOM DOORS :
2 x Sliding Cold Room Door
COLD ROOM PANELS :
334,34 m²
AREA
100 m²
HEIGHT
2,40 m
ROOM TEMPERATURE
-18°C
CAPACITY
240 m³
AREA
50 m²
HEIGHT
2,40 m
ROOM TEMPERATURE
+2°C
CAPACITY
120 m³
